EPD-IES-0027222:003
Hot Rolled sheet manufactured from steel scrap by T A 2000
TYASA produces different types of hot-rolled sheet
according to the following steel grades:
Drawing Grade
Commercial Grade
Structural Grade
High-strength Low-Alloy Steel Grade
On the other hand, tension-leveling is a process that seeks to correct shape problems, such as waves
or warps, in steel sheets by gently stretching them with specialized equipment. It is important to
mention that hot-rolled sheet coils, sheets, and strips can be delivered tension-leveled and with
trimmed edges, allowing for efficient use of material and reducing waste and sub-processes. Hot rolled
sheet is manufactured by TYASA in coils, sheets, and strips, as follows: Hot-rolled steel
coils/sheets/strips.
General information
| EPD Owner | T A 2000, S.A. de C.V. |
|---|---|
| Registration number | EPD-IES-0027222:003 |
| EPD type | EPD of multiple products based on the average results of the product group |
| Status | Valid |
| Initial version date | 2025-12-19 |
| Validity date | 2030-12-18 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Licensee | EPD Mexico |
| Geographical scope | Global |
| An EPD may be updated or depublished if conditions change. This is the latest version of the EPD. | |
Programme information
| Programme | The International EPD® System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | 2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1 |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
Verification
| LCA accountability | Dulce Alejandra Zaragoza Ayala, dzaragoza@cadis.earth, T A 2000, S.A. de C.V. |
|---|---|
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
| Third-party verifier | Francisco Jesús Campo Rámila (IK Ingeniería S.L.) |
| Approved by | International EPD System |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | T A 2000, S.A. de C.V. |
|---|---|
| Contact person name | Guadalupe Román Hernández |
| Contact person e-mail | groman@ta42.com |
| Organisation address | Mexico Orizaba 94450 Carretera Federal México-Veracruz Km. 321, s/n, interior 2, Ixtaczoquitlán, Veracruz. 94450 Ixtaczoquitlán, Veracruz |
Description of the organisation of the EPD Owner
T A 2000 has more than 30 years of experience in the manufacture of steel. Innovation and optimization in production processes have driven the company to renew and diversify its product catalog. In 2016 a cutting-edge technology has been implemented in T A 2000’s steelmaking plant: an electric arc furnace (EAF) QUANTUM. The EAF QUANTUM, based on an optimized preheating and melting concept, delivers minimum conversion costs, maximized output, and environmental compliance. T A 2000’s value proposal is to offer its customers quality steel. T A 2000 has been granted with ISO 9001:2015 certification and above all the company focuses on offering an unparalleled service, characterized by competitive delivery times and optimal business conditions for the growth of its clients. T A 2000 is permanently committed to offering the market a dynamic, competitive and quality option. So that, the company have distribution centers in: Orizaba, Mérida; Arriaga, Silao and a commercial office in Mexico City.

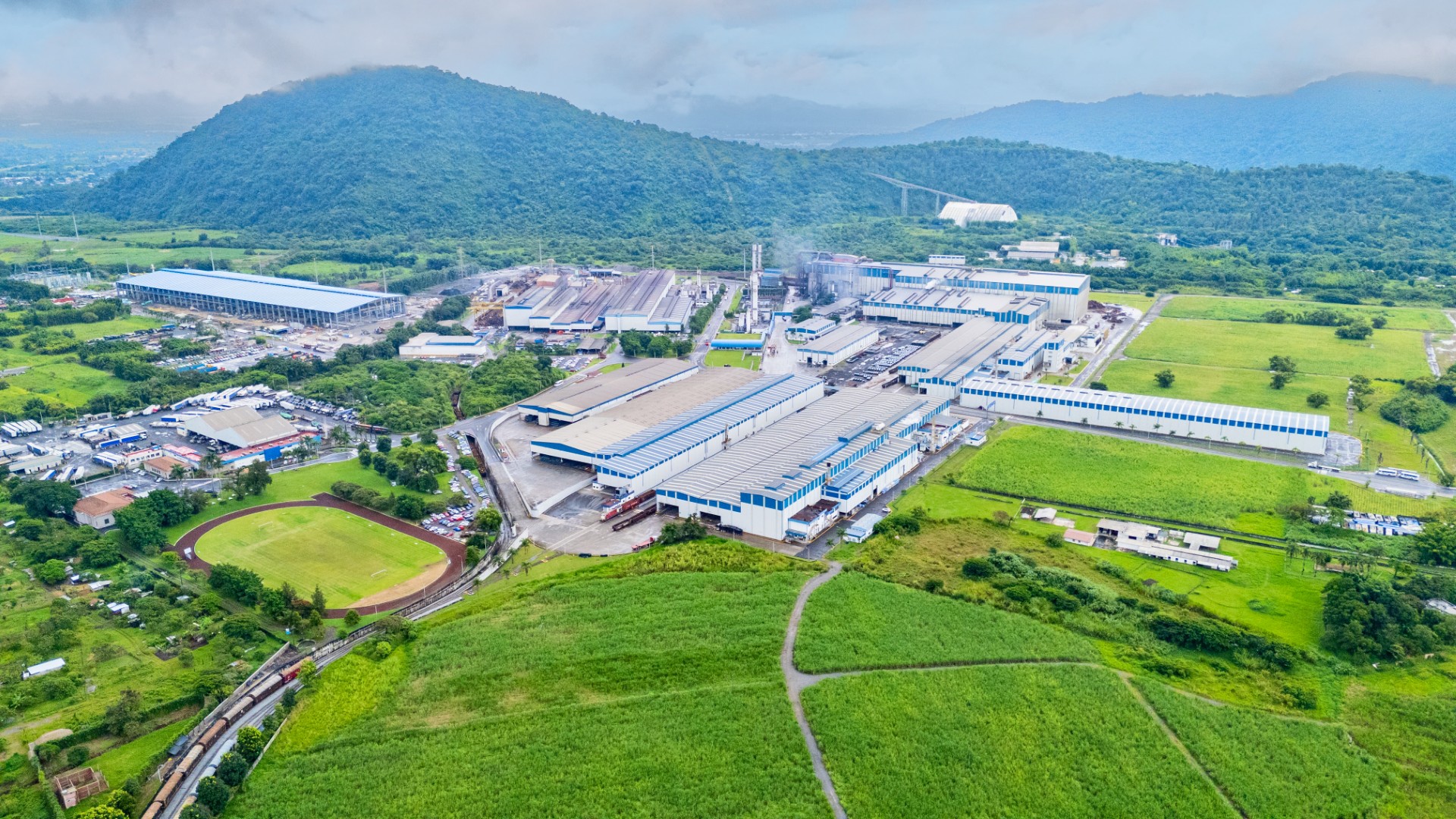

Organisation images
Organisation logo
Product information
| Product name | Hot Rolled sheet manufactured from steel scrap by T A 2000 |
|---|---|
| Product identification | 412 |
| Product description | TYASA produces different types of hot-rolled sheet according to the following steel grades: Drawing Grade Commercial Grade Structural Grade High-strength Low-Alloy Steel Grade On the other hand, tension-leveling is a process that seeks to correct shape problems, such as waves or warps, in steel sheets by gently stretching them with specialized equipment. It is important to mention that hot-rolled sheet coils, sheets, and strips can be delivered tension-leveled and with trimmed edges, allowing for efficient use of material and reducing waste and sub-processes. Hot rolled sheet is manufactured by TYASA in coils, sheets, and strips, as follows: Hot-rolled steel coils/sheets/strips. |
| Product information from external sources | https://tyasa.com/ |
| Technical purpose of product | Hot Rolled sheet, which is roughened at high temperatures, achieves specific dimensions and properties. |
| Manufacturing or service provision description | The production of Hot Rolled Sheet by TYASA begins with the reception, weighing, and storage of steel scrap, which is preheated and subsequently melted in a Quantum electric arc furnace (EAF). Once molten, the steel is refined through the addition of ferroalloys and undergoes a vacuum degassing process to remove dissolved gases and impurities that could affect the material quality. The molten steel is solidified on rollers to form a continuous strip, which then passes through a mill to adjust its thickness (CASTRIP® process). The solidified strip is then processed in a hot rolling mill, where its thickness is further adjusted to meet specifications. Afterwards, the rolled steel is cooled under controlled conditions and coiled, resulting in a hot-rolled coil that is not sold but used as raw material for final products. This coil undergoes a tension-leveling process, where internal stresses that could cause tearing during a subsequent rolling operation to reduce thickness are eliminated. Finally, a shear cuts the sheet to the desired dimensions, and the processed material is recoiled. Depending on the final product specifications, two types of products can be obtained: Tension leveled hot-rolled coil and Tension leveled hot rolled floor plate coil, which includes an additional surface treatment to provide slip resistance. To produce tension leveled hot rolled cut-to-length sheets and tension leveled floor plate cut-tolength sheets, the corresponding coils are processed in the cutting line. On the other hand, to produce Hot rolled strips, the hot-rolled coil is fed into the slitter line, where it is longitudinally trimmed to reduce its width and achieve the desired dimensions. |
| Material properties | Volumetric mass density: 7850 kg/m3 Volumetric mass density: 7850 kg/m3 |
| Manufacturing site | T A 2000 S.A. ORIZABA Mexico Veracruz 94450 Carretera Federal México-Veracruz Km. 321, s/n, interior 2, Ixtaczoquitlán |
| UN CPC code | 412. Products of iron or steel |
| Geographical scope | Global |
| Geographical scope description | The raw materials are produced in several continents. |

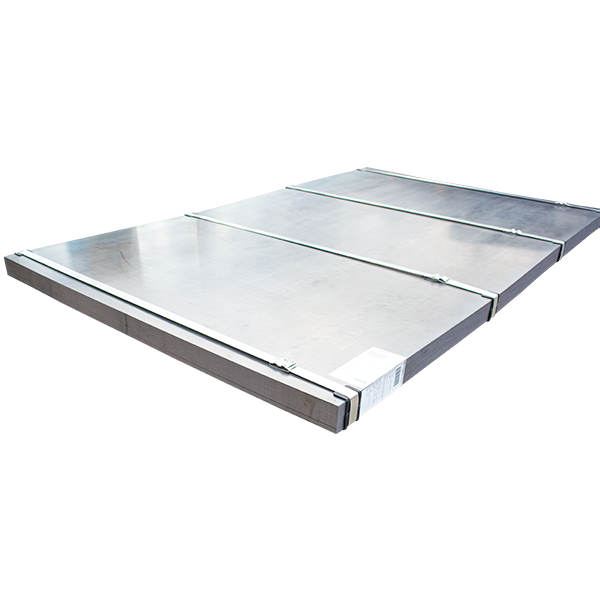

Product images
Technical characteristics and performance
Technical performance
| Product name | Type of steel | Applicable regulations |
|---|---|---|
| Hot Rolled Sheet/Coil/Strip SAE J403 1008 | G1008 | SAE J403 |
| Hot Rolled Sheet/Coil/Strip Commercial Steel (CS) Type A, B | Commercial Steel TA & TB | ASTM A1011 |
| Hot Rolled Sheet/Coil/Strip Commercial Steel (CS) Type A, B & D | Commercial Steel TA, TB & TD | ASTM A1039 |
| Hot Rolled Sheet/Coil/Strip Drawing Steel (DS) Type A, B | Drawing Steel | ASTM A1011 |
| Hot Rolled Sheet/Coil/Strip Drawing Steel (DS) Type A, B, D | Drawing Steel TA, TB | ASTM A1039 |
| Hot Rolled Sheet/Coil/Strip Structural Steel (SS) 55, 50, 36 Type 1 and 33 | Structural Steel | ASTM A1011 |
| Hot Rolled Sheet/Coil/Strip High-Strength Low-Alloy Steel (HSLAS) 50, 55, 60 | HSLAS 50, 55 60 Class 1, 2 | ASTM A1011 |
| Hot Rolled Sheet/Coil/Strip High-Strength Low-Alloy Steel (HSLAS) 50, 55, 60 | HSLAS 50, 55 60 Class 1, 2 | ASTM A1039 |
| Hot Rolled Sheet/Coil/Strip Steel Floor Plates | Pattern 2 | ASTM A786 |
Content declaration
| Content declaration of multiple products | This EPD covers multiple products. The content declaration corresponds to a representative average, calculated based on the production-weighted contributions of each included product. |
|---|---|
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
Product content
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| Scrap steel | 918.54 | 95.28 | 0 | 0 |
| Dolomitic lime | 37.28 | 0 | 0 | |
| Steelmaking lime | 35.49 | 0 | 0 | |
| Others | 8.69 | 0 | 0 | |
| Total | 1000 | 95.28 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
Packaging materials
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| kraft | 0.011 | 0.001 | 0 |
| wood | 0.611 | 0.061 | 0 |
| steel | 0.077 | 0.008 | 0 |
| plastic | 0.002 | 0.0002 | 0 |
| Total | 0.701 | 0.0702 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | 1000 kg of Hot Rolled Sheet manufactured from steel scrap during the year 2022 by TYASA at the Ixtaczoquitlán plant, used by various industrial sector Mass: 1000 kg |
| Conversion factor to mass | 1 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.10 database |
| LCA Software | SimaPro SimaPro 9.6 |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | Global Warming Potential,GWP100 , EN 15804. Version: EF 3.1, February 2023. Acidification potential, AP, accumulated exceedence, EN 15804.Version: February 2023. Eutrophication potential (EP) Version 2.0 of the default list of indicators (valid from 2022-03-29). Photochemical ozone creation potential (POCP), POCP, LOTOSEUROS applied in ReCiPe, EN 15804. Version: February 2023. Ozone depletion potential (ODP), EN 15804. Version: February 2023. Abiotic depletion potential (ADP) for minerals and metals (non-fossil resources), ADP minerals & metals, EN 15804. Version: February 2023. Abiotic depletion potential (ADP) for fossil resources, ADP fossil resources, EN 15804. Version: August 2021. Water deprivation potential (WDP), (Available water remaining (AWARE) method), EN 15804. |
| Technology description including background system | Hot-rolled steel sheet manufactured by TYASA is produced using steel scrap as the primary raw material. The product is supplied in coils, sheets, and strips, and is available in various steel grades, including drawing, commercial, structural, and high-strength low-alloy grades. The manufacturing process starts with the reception, preparation, and melting of steel scrap in an electric arc furnace (EAF). The molten steel is subsequently refined, degassed, and cast into a continuous strip through the CASTRIP® process. This strip is then hot-rolled to the specified thickness, cooled under controlled conditions, and coiled to produce the hot-rolled coil that serves as feedstock for downstream processing. Depending on the final product specifications, the coil may undergo a tension-leveling process to relieve internal stresses and improve flatness. The material can then be cut to length or slit to obtain sheets or strips with the required dimensions. |
| Scrap (recycled material) inputs contribution level | More than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Scrap (recycled material) inputs data
| Material scrap name | Material scrap value |
|---|---|
| Scrap steel | 316, kg CO2 eq./tonne |
| The share of the total scrap input that was assumed to come with an environmental burden | 100% |
Data quality assessment
| Description of data quality assessment and reference years | Direct data obtained from T A 2000 S.A. de C.V. is representative for 2022. According to ISO 14044, data validity verified during the collection process to provide evidence that the quality criteria required for the intended application are met. The data quality level and criteria used were based on the Product Category Rules (GPI 5.0.1, section A.5.4), the EN 15804:2012+A2:2019/AC:2021 standard (Annex E), and the PCR Construction Products v2.0.1, section 4.6.5.Data quality assessment was carried out using the following quality levels: very good, good, fair, poor, and very poor. |
|---|
Data quality assessment
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| Extraction and processing of raw materials required for the manufacturing of products | Collected data | EPD owner | 2022 | Primary data | 99% |
| Generation and distribution of electricity, based on the regional average of the consumption area. | Collected data | EPD owner | 2022 | Primary data | 1% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 100% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
Electricity data
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Specific electricity mix as generated, or purchased from an electricity supplier, demonstrated by a contractual instrument | |
| Energy sources | Hydro | 13.75% |
| Wind | 5.11% | |
| Solar | 4.26% | |
| Biomass | 0% | |
| Geothermal | 1.02% | |
| Waste | 0% | |
| Nuclear | 3.43% | |
| Natural gas | 67.39% | |
| Coal | 4.45% | |
| Oil | 0.58% | |
| Peat | 0% | |
| Other | 0.01% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.41 kg CO2 eq./kWh | |
System boundary
| Description of the system boundary | a) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D). |
|---|---|
| Excluded modules | Yes, there is an excluded module, or there are excluded modules |
| Justification for the omission of modules | A4, A5 and B module: Optional |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | ND | ND | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Global | Global | Mexico | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Mexico | Mexico | Mexico | Mexico | Mexico | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 90% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 10% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

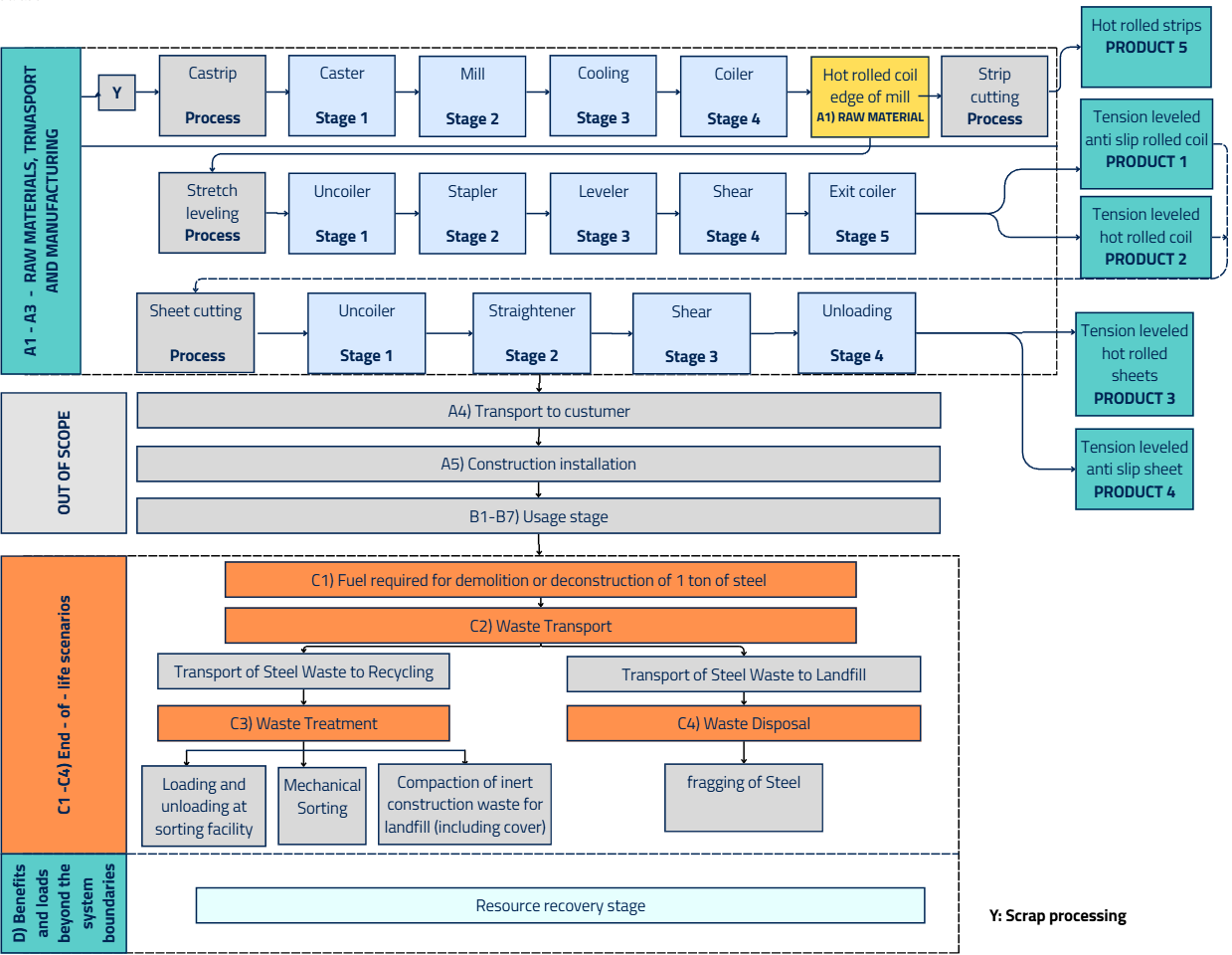

Process flow diagram(s) related images
Default scenario
| Name of the default scenario | End of life default scenario |
|---|---|
| Description of the default scenario | In this study, the end-of-life treatment was modelled based on a scenario in which 98% of the steel is recovered and recycled, while the remaining 2% is sent to landfill. |
Module C: End-of-life
| Explanatory name of the default scenario in module C | Recycling and landfill |
|---|---|
| Brief description of the default scenario in module C | Demolition of 1 tonne of steel, 98% steel recycled and 2% landfilled disposed |
| Module C information | Value | Unit |
|---|---|---|
| C1) Demolition/deconstruction of steel | 1.1 | kWh |
| C2) Transport (for products/materials not to be incinerated) | 80 | km |
| C3) Loading and unloading at sorting facility | 1.8 | kWh |
| C3) Mechanical sorting | 2.2 | kWh |
| C3) Fragging of steel | 7.4 | kWh |
| C4) Compacting inert construction waste for landfills | 1.6 | kWh |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Resource recovery stage |
|---|---|
| Brief description of the default scenario in module D | Benefits from substituting virgin steel with recycled scrap, avoiding related impacts |
| Module D information | Value | Unit |
|---|---|---|
| Amount of scrap content existing the system. | 98 | % |
| Amount of scrap or recycled material contained in the product beyond the system boundary. | 92 | % |
Additional scenario 1
| Name of the additional scenario | End-of-life scenario: 100% recycling |
|---|---|
| Description of the additional scenario | In this alternative escenario, the end-of-life treatment was modelled based on a scenario in which 100% of the steel is recovered and recycled. |
Module C: End-of-life
| Description of the additional scenario in module C | 100% steel recycling: loading and unloading at a sorting facility, and mechanical sorting and fragmentation. |
|---|
| Module C information | Value | Unit |
|---|---|---|
| C1) Demolition/deconstruction of steel | 1.1 | kWh |
| C2) Transport (for products/materials not to be incinerated) | 80 | km |
| C3) Loading and unloading at sorting facility | 1.8 | kWh |
| C3) Mechanical sorting | 2.2 | kWh |
| C3) Fragging of steel | 7.4 | kWh |
Module D: Beyond product life cycle
| Description of the additional scenario in module D | Module D does not present an alternative scenario. |
|---|
Additional scenario 2
| Name of the additional scenario | End-of-life scenario: 100% landfill |
|---|---|
| Description of the additional scenario | In this alternative scenario, the end-of-life treatment was modelled assuming that 100% of the steel is sent to landfill. |
Module C: End-of-life
| Description of the additional scenario in module C | 100% landfilled after demolition, including compaction of inert construction waste at landfill. |
|---|
| Module C information | Value | Unit |
|---|---|---|
| C1)Demolition/deconstruction of steel | 1.1 | kWh |
| C2)Transport (for products/materials not to be incinerated) | 80 | km |
| C4)Compacting of inert construction waste for landfills | 1.6 | kWh |
Module D: Beyond product life cycle
| Description of the additional scenario in module D | Module D does not present an alternative scenario. |
|---|
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 8.09E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.72E-1 | 1.22E+1 | 3.94E+0 | 1.08E-2 | -1.11E+2 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 8.09E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.72E-1 | 1.22E+1 | 3.94E+0 | 1.08E-2 | -1.11E+2 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | 1.47E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.60E-5 | 5.83E-4 | 1.74E-4 | 4.66E-7 | -6.75E-3 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 1.62E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.28E-5 | 3.99E-4 | 1.14E-4 | 3.72E-7 | -1.16E-2 |
| Ozone depletion | ODP | kg CFC-11 eq. | 1.41E-5 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.85E-9 | 1.78E-7 | 7.11E-8 | 1.70E-10 | -2.43E-7 |
| Acidification | AP | mol H+ eq. | 3.05E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.48E-3 | 4.62E-2 | 3.01E-2 | 1.01E-4 | -3.49E-1 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 9.43E-3 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.51E-7 | 2.96E-5 | 1.05E-5 | 1.02E-8 | -3.67E-3 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 1.07E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.63E-3 | 1.89E-2 | 1.37E-2 | 4.75E-5 | -7.07E-2 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 1.17E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.79E-2 | 2.07E-1 | 1.51E-1 | 5.21E-4 | -8.27E-1 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 3.90E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.33E-3 | 6.71E-2 | 4.56E-2 | 1.55E-4 | -2.84E-1 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 1.71E-4 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.55E-8 | 7.26E-7 | 1.38E-7 | 4.52E-10 | -1.61E-5 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 1.17E+4 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.90E+0 | 1.65E+2 | 5.48E+1 | 1.42E-1 | -1.03E+3 |
| Water use | WDP1 | m3 world eq. deprived | 1.06E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.86E-3 | 1.49E-1 | 1.10E-1 | 1.12E-4 | -6.79E+0 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 8.09E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.72E-1 | 1.22E+1 | 3.94E+0 | 1.08E-2 | -1.11E+2 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Additional voluntary environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Particulate matter emissions | PM | Disease incidence | 9.48E-5 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 9.98E-8 | 8.50E-7 | 8.20E-7 | 2.90E-9 | -9.76E-6 |
| Ionizing radiation - human health | IRP1 | kBq U235 eq. | 1.84E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.38E-4 | 1.12E-2 | 5.24E-2 | 1.27E-5 | -2.38E-1 |
| Eco-toxicity - freshwater | ETP-fw2 | CTUe | 3.83E+3 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.69E-1 | 1.07E+1 | 1.54E+0 | 4.93E-3 | -4.00E+3 |
| Human toxicity - cancer effects | HTP-c2 | CTUh | 1.16E-5 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.69E-10 | 8.12E-8 | 4.21E-9 | 1.07E-11 | -2.39E-7 |
| Human toxicity - non-cancer effects | HTP-nc2 | CTUh | 3.37E-6 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.59E-11 | 1.03E-9 | 2.41E-10 | 7.54E-13 | -1.14E-5 |
| Land-use related impacts/soil quality | SQP2 | Dimensionless | 3.49E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.04E-2 | 6.58E-1 | 1.78E-1 | 3.02E-4 | -1.15E+2 |
| Acronyms | PM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator. | ||||||||||||||||
| Disclaimer 2 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 8.77E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.10E-2 | 2.68E-1 | 7.20E+0 | 3.19E-4 | -1.05E+1 |
| PERM | MJ, net calorific value | 1.17E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | -4.46E+0 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 8.89E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.10E-2 | 2.68E-1 | 2.74E+0 | 3.19E-4 | -1.05E+1 |
| PENRE | MJ, net calorific value | 1.25E+4 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.20E+0 | 1.75E+2 | 1.22E+2 | 1.51E-1 | -1.10E+3 |
| PENRM | MJ, net calorific value | 1.67E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | -6.34E+1 | 0.00E+0 | 0.00E+0 |
| PENRT | MJ, net calorific value | 1.27E+4 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.20E+0 | 1.75E+2 | 5.88E+1 | 1.51E-1 | -1.10E+3 |
| SM | kg | 9.19E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 2.98E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.54E-4 | 6.16E-3 | 2.85E-3 | 4.47E-6 | -1.78E-1 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 6.07E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.36E-5 | 1.13E-3 | 3.32E-4 | 9.77E-7 | -1.19E-2 |
| NHWD | kg | 7.74E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.43E-4 | 6.92E-3 | 1.93E-3 | 4.16E-6 | -6.88E-1 |
| RWD | kg | 8.39E-3 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.50E-7 | 5.81E-6 | 2.09E-5 | 7.28E-9 | -1.51E-4 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 2.03E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 9.80E+2 | 0.00E+0 | 0.00E+0 |
| MER | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Results for additional scenarios for modules A4-C4
| Additional scenario | End-of-life scenario: 100% recycling |
|---|---|
| Description of the scenario/method | In this alternative scenario, the end-of-life treatment was modelled assuming that 100% of the steel is recovered and recycled. |
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.72E-1 | 1.22E+1 | 4.02E+0 | ND | ND |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.72E-1 | 1.22E+1 | 4.02E+0 | ND | ND |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.60E-5 | 5.83E-4 | 1.78E-4 | ND | ND |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.28E-5 | 3.99E-4 | 1.16E-4 | ND | ND |
| Ozone depletion | ODP | kg CFC-11 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.85E-9 | 1.78E-7 | 7.25E-8 | ND | ND |
| Acidification | AP | mol H+ eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.48E-3 | 4.62E-2 | 3.08E-2 | ND | ND |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.51E-7 | 2.96E-5 | 1.07E-5 | ND | ND |
| Eutrophication aquatic marine | EP-marine | kg N eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.63E-3 | 1.89E-2 | 1.40E-2 | ND | ND |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.79E-2 | 2.07E-1 | 1.54E-1 | ND | ND |
| Photochemical ozone formation | POCP | kg NMVOC eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.33E-3 | 6.71E-2 | 4.66E-2 | ND | ND |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.55E-8 | 7.26E-7 | 1.41E-7 | ND | ND |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.90E+0 | 1.65E+2 | 5.59E+1 | ND | ND |
| Water use | WDP1 | m3 world eq. deprived | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.86E-3 | 1.49E-1 | 1.12E-1 | ND | ND |
| Acronyms | |||||||||||||||||
| Disclaimers | 1 The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Results for additional scenarios for modules A4-C4
| Additional scenario | End-of-life scenario: 100% landfill |
|---|---|
| Description of the scenario/method | In this alternative scenario, the end-of-life treatment was modelled assuming that 100% of the steel is sent to landfill. |
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.72E-1 | 1.22E+1 | ND | 5.41E-1 | ND |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.72E-1 | 1.22E+1 | ND | 5.41E-1 | ND |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.60E-5 | 5.83E-4 | ND | 2.33E-5 | ND |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.28E-5 | 3.99E-4 | ND | 1.86E-5 | ND |
| Ozone depletion | ODP | kg CFC-11 eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.85E-9 | 1.78E-7 | ND | 8.51E-9 | ND |
| Acidification | AP | mol H+ eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.48E-3 | 4.62E-2 | ND | 5.06E-3 | ND |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.51E-7 | 2.96E-5 | ND | 5.11E-7 | ND |
| Eutrophication aquatic marine | EP-marine | kg N eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.63E-3 | 1.89E-2 | ND | 2.38E-3 | ND |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.79E-2 | 2.07E-1 | ND | 2.61E-2 | ND |
| Photochemical ozone formation | POCP | kg NMVOC eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.33E-3 | 6.71E-2 | ND | 7.75E-3 | ND |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.55E-8 | 7.26E-7 | ND | 2.26E-8 | ND |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.90E+0 | 1.65E+2 | ND | 7.12E+0 | ND |
| Water use | WDP1 | m3 world eq. deprived | ND | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.86E-3 | 1.49E-1 | ND | 5.62E-3 | ND |
| Acronyms | |||||||||||||||||
| Disclaimers | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Additional environmental information
Tyasa has an Implementation Plan for the Environmental Management System for ISO 14001 with a progress of 75%, led by the Management Systems Department.
Information related to EPDs of multiple products
| Description of how the averages have been determined | The average value was determined by considering the included products and applying a weighting based on their respective production volumes. |
|---|
Abbreviations
CADIS Centre for Life Cycle Assessment and Sustainable Design
CENACE National Center for Energy Control
EAF Electric arc furnace
EPD Environmental Product Declaration
GHG Greenhouse gases
GPI General Programme Instructions
GWP Global Warming Potential
LCA Life Cycle Assessment
PCR Product Category Rules
References
BIEE. (2023). Base de Indicadores de Eficiencia Energética de México. Obtained from https://www.biee-conuee.net/site/index.php
Coto, G., Rosa, E., Solano, A., & Zaragoza, D. (2025), Life Cycle Assessment of Hot Rolled sheet manufactured from steel scrap by T A 2000, Center for Life Cycle Assessment and Sustainable Design – CADIS.
European Committee for Standardization. (2019). Sustainability of construction works — Environmental product declarations — Core rules for the product category of construction products (EN 15804:2012+A2:2019). CEN.
Frischknecht Rolf. (2007). Implementation of Life Cycle Impact Assessment Methods. Ecoinvent report No. 3.
Huijbregts, M. A., Steinmann, Z. J., Elshout, P. M., Stam, G., Verones, F., Vieira, M. D., . . . van Zelm, R. (2017). ReCiPe 2016 v1.1. A harmonized life cycle impact assessment method at midpoint and endpoint level Report I: Characterization. Bilthoven, The Netherlands:National Institute for Public Health and the Environment.
IMNC. (2008). NMX-SAA-14040-IMNC Gestión ambiental - Análisis de ciclo de vida - Principios y marco de referencia. México, D.F.: IMNC.
ISO 14020. (2000). Environmental Labels and Declarations — General Principles.
ISO 14025. (2006). Type III Environmental Declarations.
ISO 14044. (2006). Environmental management - Life cycle assessment - Requirements and guidelines.
Mexican Institute of Steel Construction. (n.d.). Structural steel: The green construction material par excellence. https://www.imca.org.mx/newsletters/news14.php
PCR 2019:14 Construction Products V 2.0.1. (2025-06-05). EPD System. Obtained from https://www.environdec.com/
PCR 2019:14 Construction Products V 2.0.1. (2025-06-05). EPD System. Obtenido de https://www.environdec.com/
PRé Consultants. (2010). Data base manual. Methods library. Retrieved abril 20, 2010, from http://www.pre.nl/download/manuals/DatabaseManualMethods.pdf
PRé Sustainability. (2021). SimaPro database manual. Methods library.
The International EPD System (2025). General Programme Instructions for The International EPD System. Version 5.0.1 Published on 2025-02-27.
Version history
Version 001, 2025-12-22Original version of the EPDVersion 002, 2025-12-22 Corrected editorial mistakes.Version 003, 2026-01-13Corrected editorial mistakes.
