EPD-IES-0028472:005

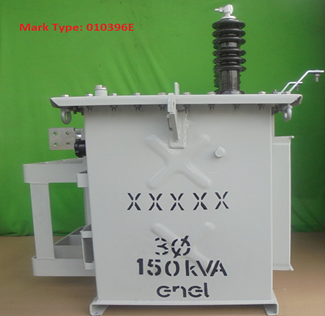

150 KVA Oil filled Transformer 10396E

Transformer Model:

10396E- 150KVA; 13.8/0.22kV

CRGO core, Aluminum wound, vegetable oil filled transformer

Technical Specification: GST001

Frequency -60Hz; Rated capacity – 150kVA

Nominal system voltage – 13.8KV; Maximum system voltage – 17.5KV

Maximum LV voltage – 1.1KV

No load losses – 104W (MAX.); Full load losses – 1530W (MAX); Lifetime – 35 Years

Updated
Registration numberEPD-IES-0028472:005
StatusValid
Version date2026-03-02
Validity date2030-12-27
PCR2024:06 Electronic and electric equipment, and electronic components (non-construction) (EN 50693) 1.0.1
Standards conformanceISO 14025:2006
LicenseeEPD India
Geographical scopeGlobal
LCA PractitionersSampath Kumar D, sampath.danuguri@toshiba-ttdi.com, Toshiba Transmission & Distribution Systems (India) Pvt. Ltd.
